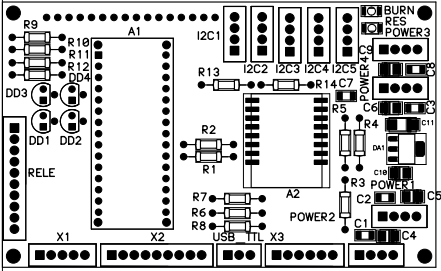

Список деталей для контроллера
| A1 |
ARDUINO NANO |
|
| A2 |
ESP8266 ESP-07 |
|
| BA1 |
HPM14AX |
|
| BURN_1, BURN_2, RES_1, RES_2 |
LEP |
|
| C1, C2, C3, C7, C8 |
C-1206 |
0.1u |
| C4, C5, C6, C9, C10 |
B-CASE |
3.3u, 3.3u, 3.3u, 3.3u, 10u |
| C11 |
C-CASE |
100u |
| DA1 |
SOT-223 |
|
| DD1, DD2, DD3, DD4 |
TO-92-2 |
|
| I2C1, I2C2, I2C3, I2C4, I2C5, POWER1, POWER2, POWER3, POWER4 |
JMP_1X4 |
|
| R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11, R12 |
R-0805 |
4.7k, 4.7k, 10k, 10k, 10k, 10k, 10k, 10k, 4.7k, 4.7k, 4.7k, 4.7k |
| RELE |
JMP_1X10 |
|
| USB_TTL |
JMP_1X3 |
|
| X1, X4 |
JMP_1X5 |
|
| X2, X3 |
JMP_1X6 |
|
|
|

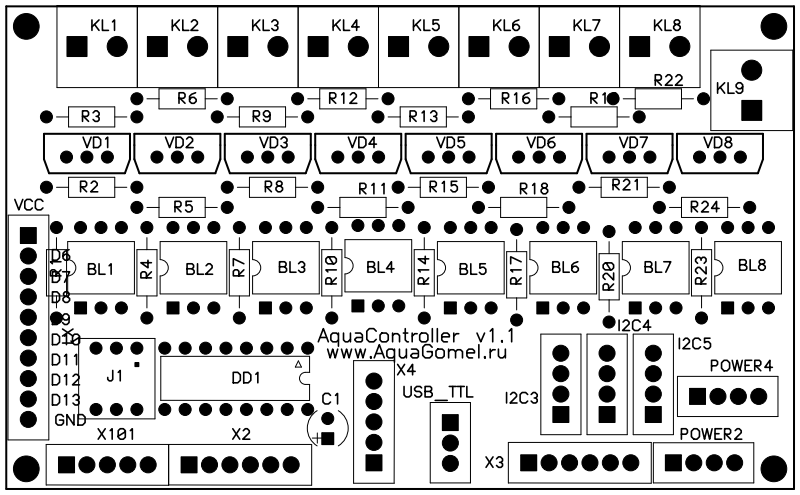

Список деталей для силовой части
| MOC3041 |
BL1, BL2, BL3, BL4, BL5, BL6, BL7, BL8 |
PDIP-6 |
| 1u |
C1 |
К50-35-0511_Primary |
| 74HC595 |
DD1 |
DIP-16 |
| |
I2C3, I2C4, I2C5, POWER2, POWER4 |
JMP_1X4 |
| |
J1 |
DS1040-3 |
| |
KL1, KL2, KL3, KL4, KL5, KL6, KL7, KL8, KL9 |
KLEM-VINT-STEP-5MM |
| 470 |
R1, R4, R7, R10, R14, R17, R20, R23 |
C2-33H-0.125W |
| 360 |
R2, R3, R5, R6, R8, R9, R11, R12, R13, R15, R16, R18, R19, R21, R22, R24 |
C2-33H-0.125W |
| |
USB_TTL |
JMP_1X3 |
| BT139-600 |
VD1, VD2, VD3, VD4, VD5, VD6, VD7, VD8 |
TO220-AB-VERT |
| |
X1 |
JMP_1X10 |
| |
X2, X3 |
JMP_1X6 |
| |
X4, X101 |
JMP_1X5 |
|
